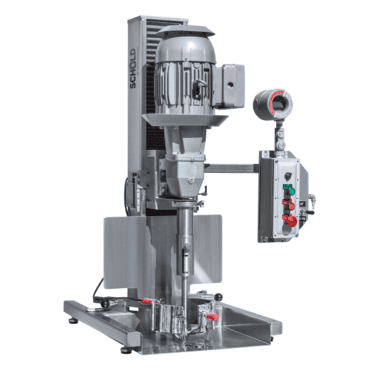

Lab Mixer Explosion Proof
Lab Mixer Cart with Temperature Control, Vacuum Pump, and Control Panel
lab mixer with high shear mixing blade

The LMX
Lab Mixer

The LMX Lab Mixer is a solid choice for small-scale production, R&D, quality assurance, and more. Suitable for a wide range of products, the LMX is designed with versatility and reliability in mind. For lab milling, find the EMI Lab Media Mill. And if you are ready to scale up production, the VHS High-Speed Disperser and VLS Low-Speed Mixer are common options.

  • Robust, durable design
  • Simple operation, easy to clean
  • Process from 1 quart up to 5 gallons
  • Direct-coupled shaft design for enhanced power and torque
  • Touch screen control for quick view of mixer status and ability to adjust as needed
  • Single or three-phase power options – no need for compressed air or hydraulics
  • Custom blade options to fit your application – high-speed (high-shear, immersion mill, rotor stator, poly blade, etc.) or low-speed (bow-tie, axial flow, etc.)

Description

View Brochure
All Schold Equipment
View Brochure
Questions / Quote Request
All Schold Equipment

Is a Lab Mixer a Fit for My Operation?

A lab mixer is an ideal choice if you need to test or develop new formulations, produce small batches, or perform quality control on various materials. The compact and versatile LMX Lab Mixer is designed to handle a wide range of viscosities and mixing tasks, from gentle stirring to high-shear mixing. Whether you’re in a research and development environment, working in a pilot plant, or need to scale up your processes, a lab mixer can provide the adaptability and control necessary to achieve consistent and reliable results.

Looking for maximum particle reduction? Our EMI Mills division specializes in a variety of lab bead mills capable of producing nanoparticle sizes.

Common Applications for Lab Mixers

Lab mixers are used in a variety of industries and applications where small-scale mixing, blending, and dispersing are required. They provide the flexibility to handle a wide range of materials and processes, making them an essential tool for R&D, quality control, and pilot-scale production.
Lab Mixer Mixing Paint Application with Bowtie Blade
lab mixer mixing paint with rotor stator head
mixing equipment for paints inks and coatings - cover

Paints, Inks, and Coatings:

Excellent for developing formulations for paints, inks, and coatings, ensuring color consistency, viscosity, and stability.

Chemicals:

Used for mixing chemicals in a controlled environment to study reactions, develop new compounds, or optimize formulations.

Cosmetics and Personal Care:

Helps in mixing creams, lotions, and other cosmetic products to achieve the desired texture and stability.

Pharmaceuticals:

Ideal for preparing solutions, suspensions, and emulsions in drug development and testing.

Food and Beverage:

Great for creating small batches of food products, beverages, or flavorings, allowing for easy testing and adjustments.

Adhesives and Sealants:

Suitable for blending components to achieve desired adhesive properties and ensuring stable formulations.

Plastics and Composites:

Useful for mixing resin systems and fillers to develop new materials with specific performance characteristics.



Don’t see your application? After 75+ years, chances are we have worked with it (or something similar). Contact us to discover your options and get started.

LMX Lab Mixer Options and Features

Motor Options
  • Standard TEFC (Totally Enclosed Fan Cooled)
  • Explosion-Proof (XP) for hazardous environments

Horsepower
  • 2 HP (1.5 kW), 3 HP (2 kW), or 5 HP (4 kW)

Speed Control
  • Shaft speeds from 800 RPM to 3600 RPM
  • Variable speed control for precise mixing
  • Ask about high-speed capabilities

Shaft/Blade Configurations
  • Multiple shaft lengths for different vessel sizes
  • Interchangeable blades: high-shear, low-shear, axial-flow, rotor stator, immersion mill, etc.

Material Construction
  • Stainless steel with standard blast or mirror/electro-polished
  • Various blade materials based on application

Mounting Options
  • Bench-top stand for stability and ease of use
  • Clamp mounts for versatile positioning

Custom Size Options
  • Adjustable height: 18 in (457.2 mm) or 24 in (609.6 mm) of rise
  • Standard dimensions: H 53.5 in (1358.9 mm) x L 20 in (508 mm) x W 30 in (762 mm)
  • Standard shipping weight: 525 lbs.
  • Ask about the requirements for your set-up

Safety Features
  • Emergency stop button
  • Safety guard for operator protection

Additional Accessories
  • Digital display for RPM and torque monitoring
  • Compatible with a range of laboratory tanks/vessels
